Smart Electronics DC 0-25V Standard Voltage Sensor Module Test Electronic Bricks Smart Robot for arduino Diy Kit

Smart Electronics DC 0-25V Standard Voltage Sensor Module Test Electronic Bricks Smart Robot for arduino Diy Kit

gtooza.com

$0.14 USD
$0.21 USD $0.14 USD
Sale Sold out
Hign-concerned Chemical : None
is_customized : Yes
Voltage Sensor Module
Operating Temperature : -40-+85
Dissipation Power : -
Supply Voltage : -
Condition : New
Type : Voltage Regulator
JIAQISHENG JQS

size : 28*14mm









Module Description:

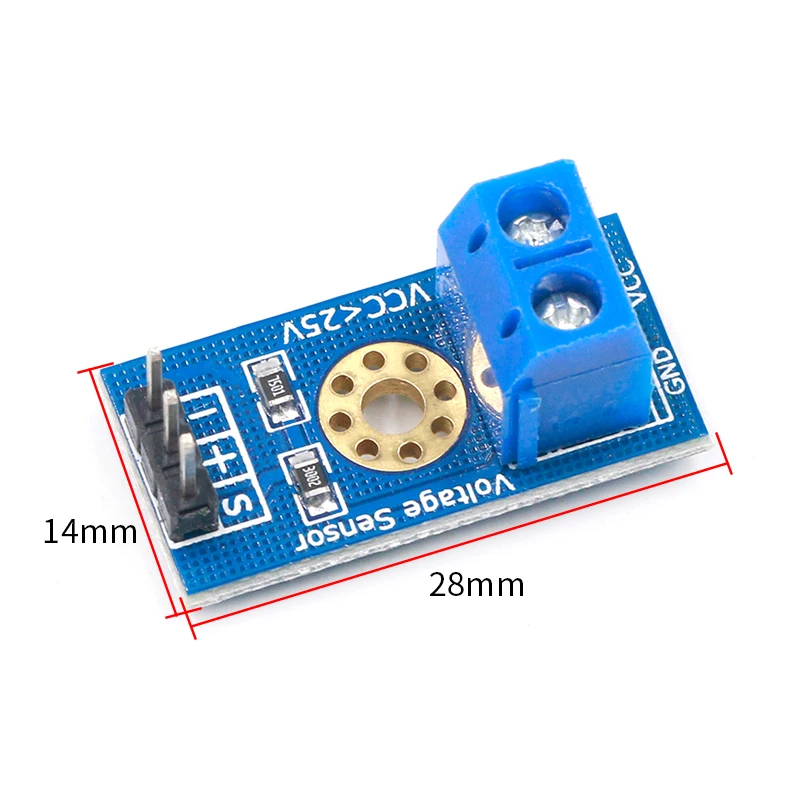

This module is based on a resistive divider design principles, can reduce the voltage of the input terminal connection five times,  analog input voltage up to 5V, then the input voltage of the voltage detection module can not be greater than 5V × 5 = 25V (3.3V if used system, the input voltage does not exceed 3.3Vx5 = 16.5V). Because  AVR chips used in 10 AD, so the simulation resolution of this module is 0.00489V (5V / 1023), so the voltage detection module detects minimum input voltage is 0.00489V × 5 = 0.02445V.

Parameters:


Input voltage range: DC0-25V

Voltage detection range: DC0.02445V-25V

Voltage analog resolutions: 0.00489V

DC Input: positive terminal connected to VCC, GND negative pole

Output interface: "+" then 5 / 3.3V, "-" then GND, "s" then the AD pin


Reference Code:


#include



int val11;

int val2;



void setup ()

{

 pinMode (LED1, OUTPUT);

 Serial.begin (9600);

 Serial.println ("Emartee.Com");

 Serial.println ("Voltage:");

 Serial.print ("V");

}

void loop ()

{

 float temp;

 val11 = analogRead (1);

 temp = val11 / 4.092;

 val11 = (int) temp; //

 val2 = ((val11% 100) / 10);

 Serial.println (val2);

 delay (1000);

}
